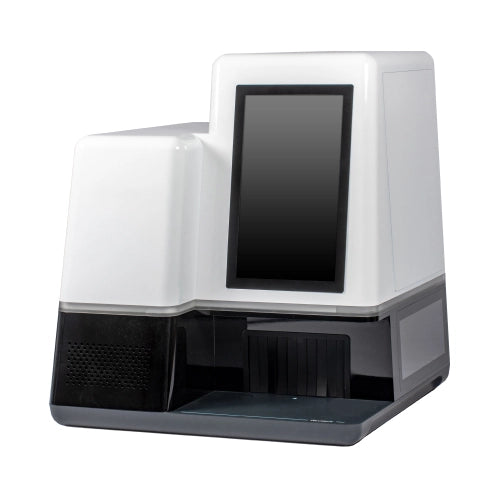

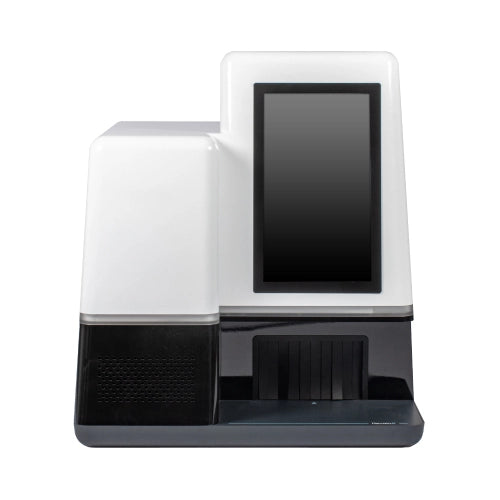

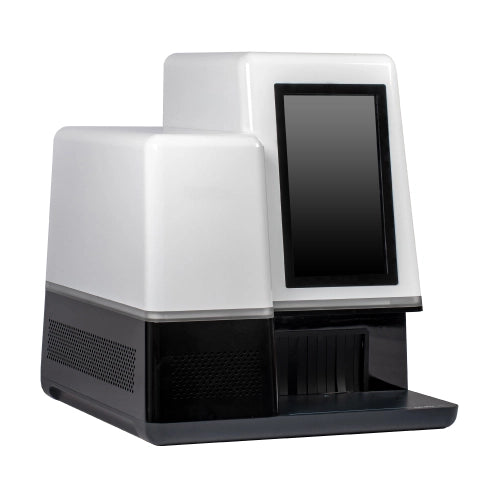

Hand Diagnosis Radiography Imaging System | Safe, sharp, and precise: Excellence in every image
Feature
- Advanced radiation safety with 80% reduced exposure, ensuring optimal protection for both patients and operators.
- Highly portable design with comprehensive shielding protection, enabling secure imaging anywhere at any time.
- Equipped with current clinical applications for precise Bone Age assessment and accurate fracture detection.
- Future-ready technology featuring advanced bone density measurement and gout diagnosis capabilities.
- All-in-one mobile imaging solution combining safety, portability, and versatile diagnostic applications.
Description
Hand Diagnosis Radiography Imaging System design integrates our patented transmission X-ray technology for application in hand diagnostic radiography. Fully compliant with ISO, QMS, and FDA certification for bone age assessment.
Benchtop Size
W62 x L65 x H70cm Weight: 80kg
Radiation Shielding
＜ 5.0 μSv/hr at 5cm from surface
Flat Panel Detector
14 X 17 DIGITAL X-RAY DETECTOR
CSI Scintillator
150μm Pixel Pitch
Module
Tube Voltage: 40 to 70 kVp
Tube Current: 0.10 to 0.50 mA
Spot size: 0.2 mm
Application
- Orthopedic Clinics: Diagnosis of fractures, dislocations, and bone-related conditions
- Rheumatology Clinics: Assessment of arthritis, gout, and joint inflammation
- Emergency Rooms: Rapid trauma diagnosis for acute hand injuries
- Hand Surgery Departments: Pre-operative planning and post-surgical monitoring
- Rehabilitation Centers: Tracking bone and joint healing progress
- Pediatric Clinics: Evaluation of bone development and growth plates in children
- Sports Medicine Centers: Diagnosis of sports-related hand and wrist injuries
- Imaging Centers: Specialized hand radiography services
- Occupational Health Clinics: Assessment of work-related hand conditions
- Plastic Surgery Clinics: Pre and post-operative evaluation for hand reconstruction
Specification
| SpeciesTube Voltage | 40 to 70 kV |
| Tube Current | 0.10 to 0.50 mA |
| Spot size | 0.20 mm |
| Dimensions | 620 x 640 x 700 mm |
| Weight | about 80kg |
| Beam Angle | 40° at 45cm SID |
| Radiation Field | 10" x 12” |
| Power Supply | 110 - 240 volts AC, 50 - 60 Hz |
| Radiation Shield | Less than 5 pSv/h at 5 cm from the surface of the chassis as per FDA 21 CFR 1020.40 |
